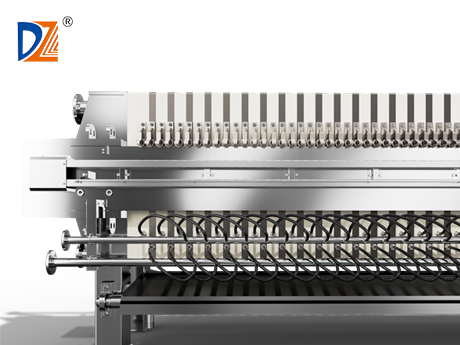

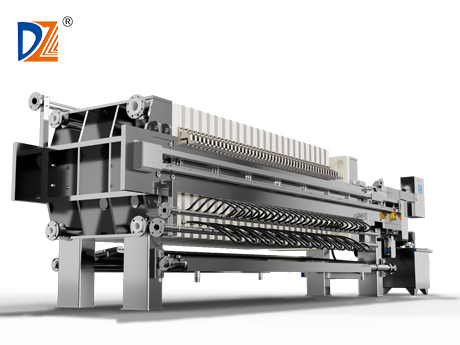

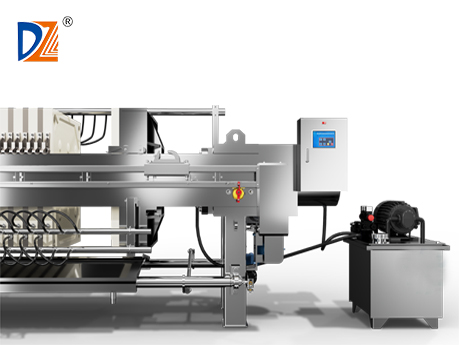

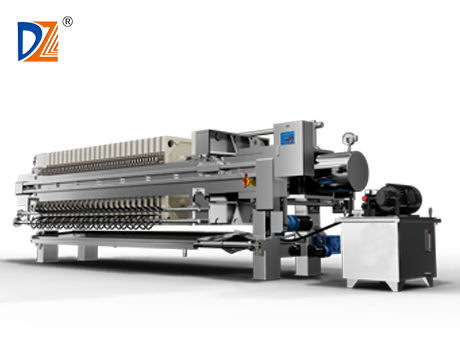

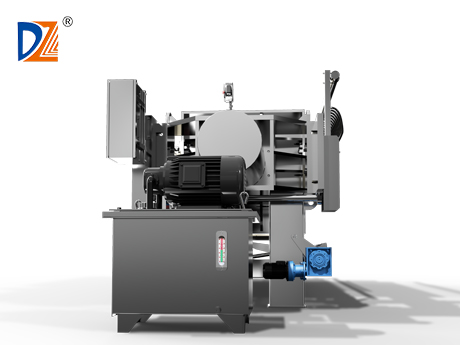

Thermal Filter Press

Advantages:

1.Fully automatic operation: the entire process is automated, enabling 24-hour unattended operation.

2.Enhanced Filtration Speed for Viscous Materials
Applications:

Thermal filtration machines are widely utilized in fields such as mining and metallurgy, chemical and petrochemical industries, food and pharmaceuticals, environmental protection, as well as industrial and municipal sludge treatment. They are particularly suitable for processing high-viscosity materials and for clients requiring a low moisture content in the filter cake.

Leave Message Send Email

Introduction

The Thermal Filter Press is an advanced solid-liquid separation system that seamlessly integrates mechanical filtration with thermal drying. In a single continuous cycle, it efficiently processes suspensions to produce clear liquid and bone-dry cakes with ultra-low moisture content. The system utilizes high-temperature thermal fluids (above 100°C), such as saturated steam or thermal oil, as the primary heat carrier to maximize drying efficiency.

Thermal Filter Press Advantages

1)Combines mechanical squeezing and thermal drying into a single unit for one-step deep dewatering.

2)Removes liquid via non-vaporization with minimal thermal assist, cutting energy consumption by over 60%.

3)Utilizes vacuum negative pressure to lower the boiling point, drastically shortening drying cycles and boosting efficiency.

Parameter

Model	Area(m²)	Plate Size(mm)	Cake Thickness(mm)	Chamber Volume(L)	Plate Qty.(pcs.)	Motor Power(KW)	Weight(Kg)	Dimensions(mm)L × W × H
XAYZG5/630-UZ	5	630×630	25	62	9	2.2	2100	2440×850×1430
XAYZG50/1000-UZ	50	1000×1000	≤35	776	27	4	4352	4385×1570×1380
XAYZG60/1000-UZ	60	1000×1000	≤35	943	33	4	4480	4885×1570×1380
XAYZG70/1000-UZ	70	1000×1000	≤35	1109	39	4	5263	5245×1570×1380
XAYZG80/1000-UZ	80	1000×1000	≤35	1275	45	4	5719	5675×1570×1380
XAYZG100/1000-UZ	100	1000×1000	≤35	1608	57	4	6555	6525×1570×1380
XAYZG120/1000-UZ	120	1000×1000	≤35	1941	69	4	7466	7375×1570×1380
XAYZG80/1250-UZ	80	1250×1250	≤40	880	29	5.5	16272	5588×1840×2150
XAYZG100/1250-UZ	100	1250×1250	≤40	1100	37	5.5	18443	6120×1840×2150
XAYZG120/1250-UZ	120	1250×1250	≤40	1320	45	5.5	20604	6652×1840×2150
XAYZG150/1250-UZ	150	1250×1250	≤40	1650	55	5.5	23312	7317×1840×2150
XAYZG160/1250-UZ	160	1250×1250	≤40	1760	59	5.5	24395	7583×1840×2150
XAYZG200/1250-UZ	200	1250×1250	≤40	2200	73	5.5	28185	8514×1840×2150
XAYZG240/1250-UZ	240	1250×1250	≤40	2640	89	5.5	32517	9578×1840×2150
XAYZG250/1250-UZ	250	1250×1250	≤40	2750	91	5.5	33059	9711×1840×2150
XAYZG200/1500-UZ	200	1500×1500	≤40	3809	49	11	26120	7140×2200×1820
XAYZG250/1500-UZ	250	1500×1500	≤40	4723	61	11	26930	7730×2200×1820
XAYZG300/1500-UZ	300	1500×1500	≤40	5637	73	11	28160	8720×2200×1820
XAYZG350/1500-UZ	350	1500×1500	≤40	6551	85	11	29600	10110×2200×1820
XAYZG400/1500-UZ	400	1500×1500	≤40	7618	99	11	31500	11260×2200×1820
XAYZG450/1500-UZ	450	1500×1500	≤40	8532	111	11	33400	12250×2200×1820
XAYZG500/1500-UZ	500	1500×1500	≤40	9446	123	11	33380	13240×2200×1820
