Auto Filter Press
-
Advantages:
1.Siemens PLC control and automatic cake discharging saves labor.
2.Higher dewatering and filtering efficiency.
3.Simple operation, wide application
-
Applications:
Slurry dewatering for wastewater treatment, Foodstuff, Chemicals, Mining, Medicine, Ceramic slurry, etc
Introduction

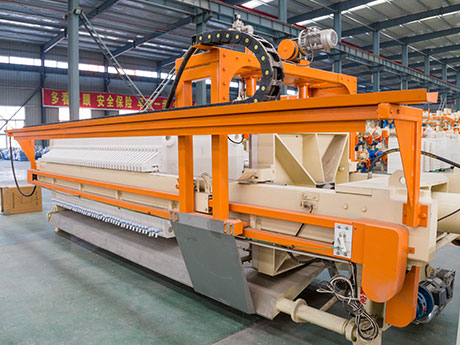

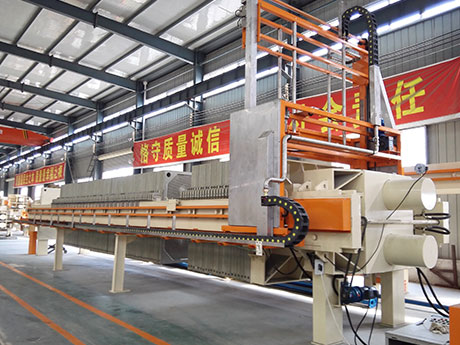

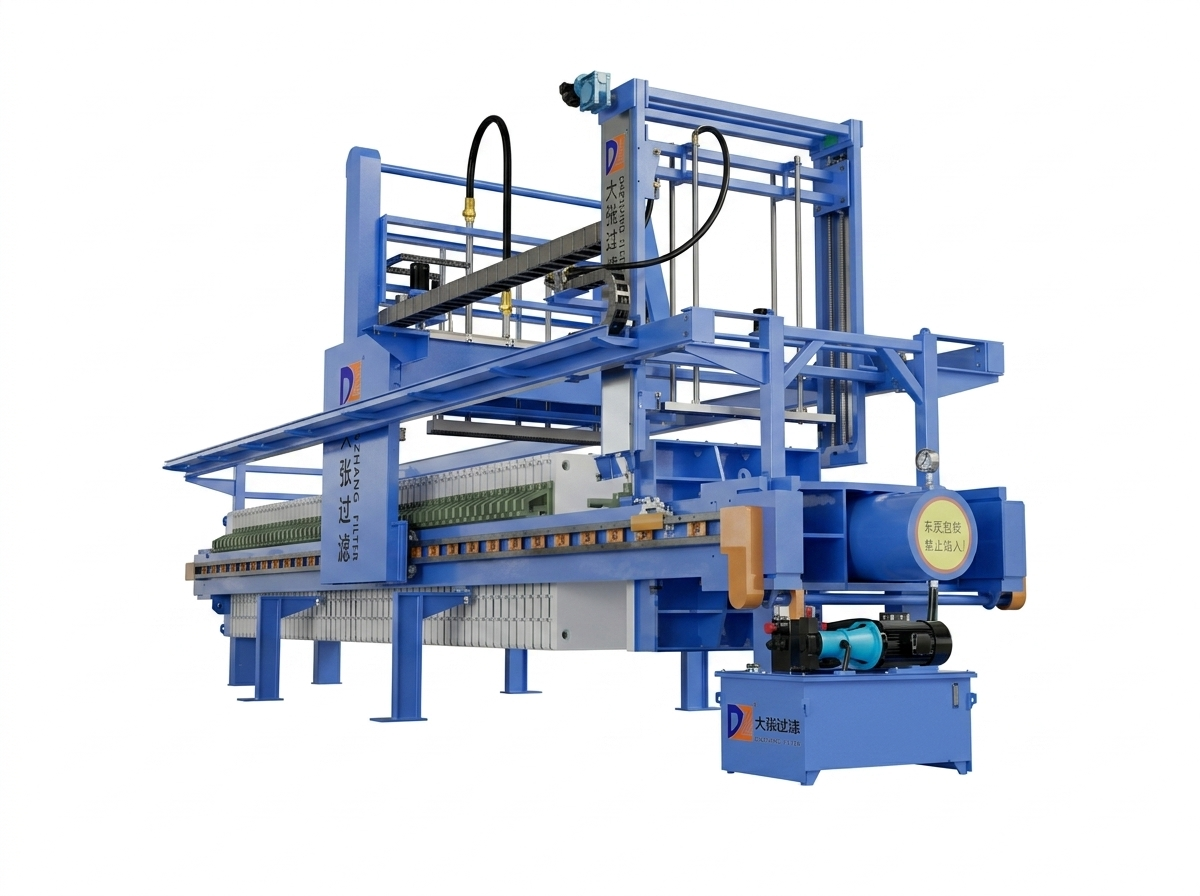

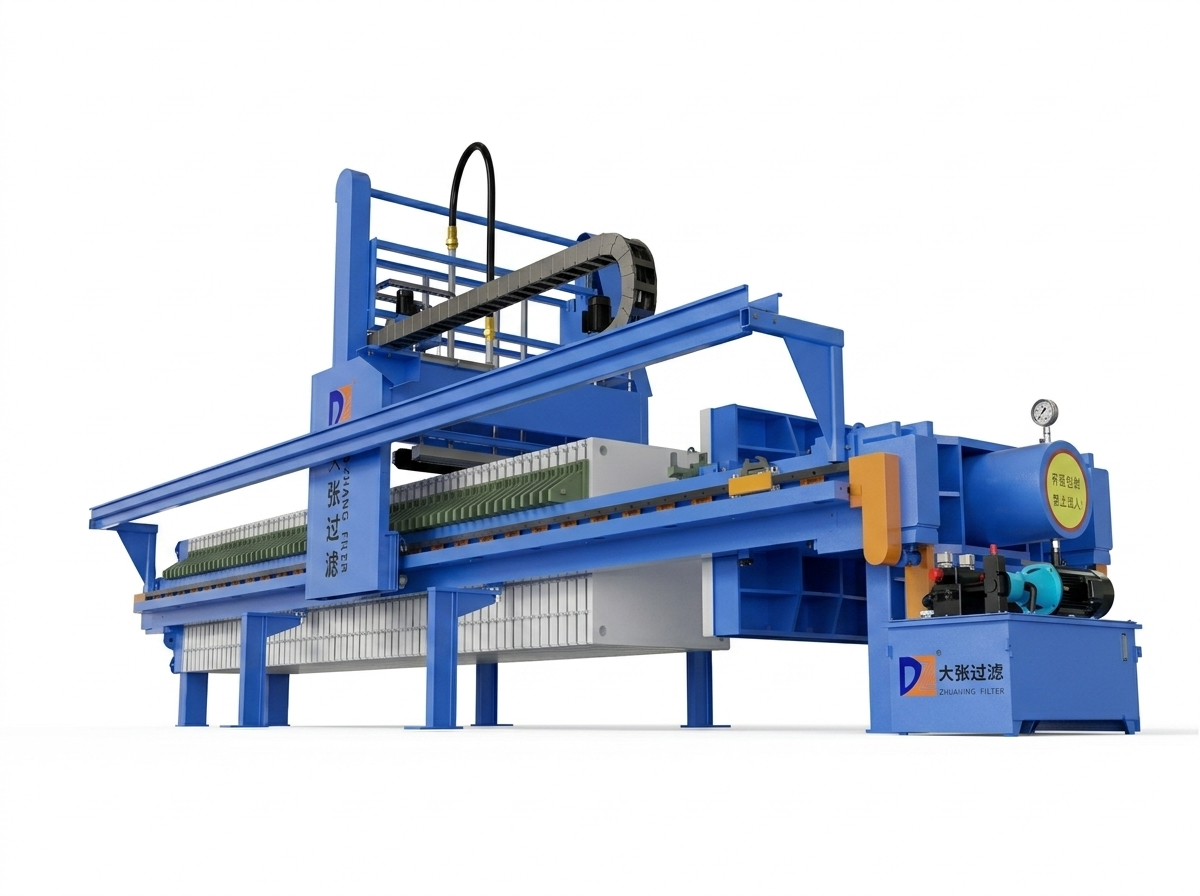

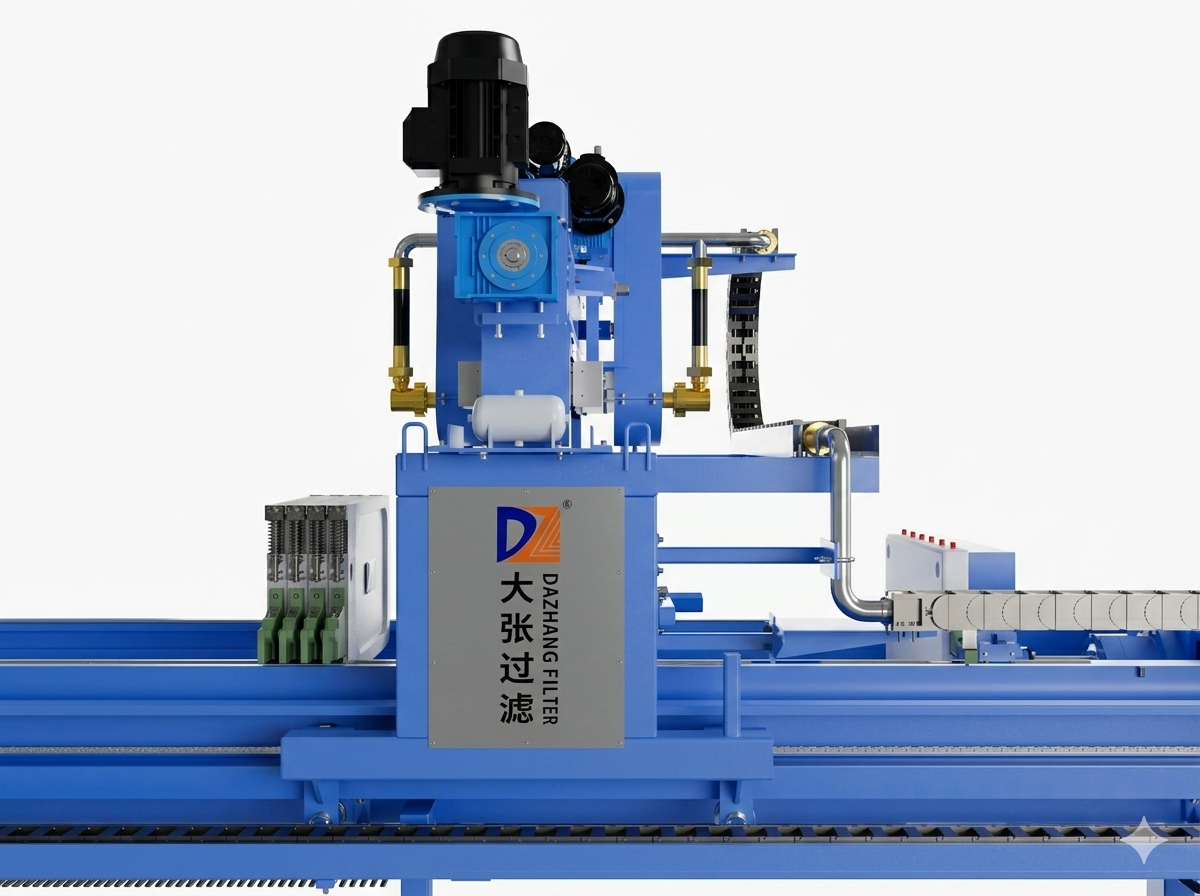

The auto filter press:Fully auto control system; Easy operation; High work efficiency; It contains automatic cloth washing system, which is designed for the customers who have requirements on cloth washing work, this function save labor cost and improve the work efficiency highly.
1.The Feeding pressure 0.6-2MPa, Hydraulic compressing, automatic maintaining pressure
2. The Frame made of high-quality Q345 carbon steel with sandblasting processing can be coated with SS304 or 316L for meeting high requirements.
3. The Hydraulic station equipped with famous brand motor, the power voltage can be customized as per customer's different requirements, closing pressure can reach 20-25MPa.
4. The Control system uses Siemens PLC to realize automatic operation includes clamping, feeding, plate opening, plate shaking, cloth cleaning, cake discharging etc.
5. The Schneider Electric components can work for many years. Stainless steel track for plate shifter is wearable, it has long service life.
6. The Customized model, capacity and products are available
Parameter
| Model | Filter press | Plate size | Cake thickness | Filter chamber volume | Plate NO | Filtration pressure | Motor power | Weight | Dimensions L*W*H(mm) | Foundation Size(mm) | ||||
| L | B | D | H | |||||||||||
| X_M^AZ30/870−30U_K^B | 30 | 870*870(Or)800*800 | 30 | 460 | 23 | 0.6 | 2.2 | 2680 | 3180*1400*1230 | 2360 | 700 | 1380 | 785 | |
| X_M^AZ40/870−30U_K^B | 40 | 595 | 30 | 3050 | 3570*1400*1230 | 2750 | ||||||||
| X_M^AZ50/870−30U_K^B | 50 | 748 | 38 | 3456 | 4110*1400*1230 | 3290 | ||||||||
| X_M^AZ60/870−30U_K^B | 60 | 902 | 46 | 4003 | 4550*1400*1230 | 3730 | ||||||||
| X_M^AZ70/870−30U_K^B | 70 | 1056 | 54 | 4584 | 4990*1400*1230 | 4170 | ||||||||
| X_M^AZ80/870−30U_K^B | 80 | 1210 | 62 | 5082 | 5430*1400*1230 | 4610 | ||||||||
| X_M^AZ50/870−30U_K^B | 50 | 1000*1000 | 30 | 736 | 28 | ≥0.6 | 4 | 4128 | 4040*1500*1400 | 3120 | 780 | 1480 | 870 | |
| X_M^AZ60/870−30U_K^B | 60 | 889 | 34 | 4636 | 4460*1500*1400 | 3480 | ||||||||
| X_M^AZ70/870−30U_K^B | 70 | 1041 | 40 | 5143 | 4760*1500*1400 | 3840 | ||||||||
| X_M^AZ80/870−30U_K^B | 80 | 1193 | 46 | 5651 | 5120*1500*1400 | 4200 | ||||||||
| X_M^AZ100/870−30U_K^B | 100 | 1475 | 57 | 6628 | 5780*1500*1400 | 4860 | ||||||||
| X_M^AZ120/870−30U_K^B | 120 | 1777 | 69 | 7644 | 6500*1500*1400 | 5580 | ||||||||
| X_M^AZ100/1250−30U_K^B | 100 | 1250*1250 | 30 | 1468 | 36 | ≥0.6 | 4 | 8307 | 5020*1800*1600 | 3970 | 850 | 1740 | 995 | |
| X_M^AZ120/1250−30U_K^B | 120 | 1746 | 43 | 9308 | 5470*1800*1600 | 4430 | ||||||||
| X_M^AZ140/1250−30U_K^B | 140 | 2063 | 51 | 10455 | 5990*1800*1600 | 4950 | ||||||||
| X_M^AZ160/1250−30U_K^B | 160 | 2341 | 58 | 11492 | 6450*1800*1600 | 5400 | ||||||||
| X_M^AZ180/1250−30U_K^B | 180 | 2619 | 65 | 12494 | 6905*1800*1600 | 5860 | ||||||||
| X_M^AZ200/1250−30U_K^B | 200 | 2896 | 72 | 13504 | 7360*1800*1600 | 6310 | ||||||||
| X_M^AZ220/1250−30U_K^B | 220 | 3214 | 80 | 14652 | 7880*1800*1600 | 6830 | ||||||||
| X_M^AZ250/1250−30U_K^B | 250 | 3650 | 91 | 16227 | 8600*1800*1600 | 7550 | ||||||||
| X_M^AZ200/1500−35U_K^B | 200 | 1500*1500 | 35 | 2998 | 49 | ≥0.6 | 7.5 | 20030 | 6400*2200*1900 | 5250 | 1170 | 1990 | 1070 | |
| X_M^AZ250/1500−35U_K^B | 250 | 3594 | 61 | 22978 | 7225*2200*1900 | 6090 | ||||||||
| X_M^AZ300/1500−35U_K^B | 300 | 4347 | 74 | 26026 | 8130*2200*1900 | 6990 | ||||||||
| X_M^AZ350/1500−35U_K^B | 350 | 5043 | 86 | 29220 | 8950*2200*1900 | 7840 | ||||||||
| X_M^AZ400/1500−35U_K^B | 400 | 5796 | 99 | 32574 | 9880*2200*1900 | 8750 | ||||||||
| X_M^AZ450/1500−35U_K^B | 450 | 6492 | 111 | 35586 | 10690*2200*1900 | 9590 | ||||||||
| X_M^AZ500/1500−35U_K^B | 500 | 7187 | 123 | 38606 | 11560*2200*1900 | 10430 | ||||||||
| X_M^AZ600/2000−40U_K^B | 600 | 2000*2000 | 40 | 8926 | 85 | ≥0.6 | 15 | 49000 | 11100*3000*2500 | 9200 | 1660 | 2000 | 1050 | |
| X_M^AZ700/2000−40U_K^B | 700 | 10380 | 99 | 53000 | 12200*3000*2500 | 10300 | ||||||||
| X_M^AZ800/2000−40U_K^B | 800 | 11210 | 107 | 57000 | 13350*3000*2500 | 11450 | ||||||||
| X_M^AZ900/2000−40U_K^B | 900 | 13290 | 127 | 61000 | 14500*3000*2500 | 12600 | ||||||||
| X_M^AZ1000/2000−40U_K^B | 1000 | 14740 | 141 | 65000 | 15600*3000*2500 | 15600 | ||||||||
Service
Pre-sales Service
In 2 hours, contact and give clear solutions
Sales Service
Provide the required information, product, site planning drawings, etc. timely
After-sales Service
Slove the problem completely,inlcuding product installation,tech training service,spare parts,on-site maintenance, etc.
