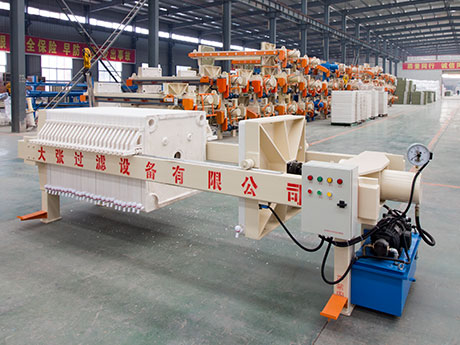

Hydraulic Filter Press
-
Advantages:
1.High closing pressure (20-25MPa) can avoid leakage effectively.
2.Hydraulic powerback uses famous motor brand, it is steady in operation.
3.Simple operation,Wide application
-
Applications:
Slurry dewatering for wastewater treatment, Foodstuff, Chemicals, Mining, Medicine, Ceramic slurry, etc
Introduction
The hydraulic filter press is electrical hydraulic closing and manual cake discharging. A motor-driven hydraulic closing system is the best method than others, because of the high clamping force. So all big machine belongs to hydraulic type. It has more advantages: easy operation, stable working, best-squeezing performance, and automatic pressure keeping, etc. Additionally, comparing with air-driven hydraulic system, it has much lower noise.
The hydraulic filter press adopts hydraulic system to open and close the filter plates, and it can bear higher filtering pressure than other closing types.
1)Feeding pressure 0.6-2Mpa, Hydraulic clamping, automatic maintaining pressure
2)Frame made of high-quality Q345 carbon steel with sandblasting processing, and it can be coated with SS304 or 316L for meeting high requirements.
3)Hydraulic station equipped with famous brand motor, the power voltage can be customized as per customer's requirement, closing pressure can reach 20-25MPa.
4)Schneider Electric components, which brings longer service life.
5)Customized model and product are available
Parameter
| Model | Filter press(m2) | Plate size(mm) | Cake thickness(mm) | Filter chamber volume(L) | Plate NO(pcs) | Filtration pressure(Mpa) | Motor power(Kw) | Weight(Kg) | Dimensions L*W*H(mm) | Foundation Size(mm) | ||||
| L | B | D | H | |||||||||||
| X_M^AY50/1000−30U_K^B | 50 | 1000*1000 | 30 | 736 | 28 | ≥0.6 | 4 | 4072 | 4040*1500*1400 | 3120 | 780 | 1400 | 870 | |
| X_M^AY60/1000−30U_K^B | 60 | 889 | 34 | 4468 | 4460*1500*1400 | 3480 | ||||||||
| X_M^AY70/1000−30U_K^B | 70 | 1011 | 40 | 4863 | 4760*1500*1400 | 3840 | ||||||||
| X_M^AY80/1000−30U_K^B | 80 | 1193 | 46 | 5259 | 5120*1500*1400 | 4200 | ||||||||
| X_M^AY100/1000−30U_K^B | 100 | 1473 | 57 | 5985 | 5800*1500*1400 | 4860 | ||||||||
| X_M^AY120/1000−30U_K^B | 120 | 1777 | 69 | 6776 | 6500*1500*1400 | 5580 | ||||||||
| X_M^AY100/1000−30U_K^B | 100 | 1250*1250 | 30 | 1468 | 36 | ≥0.6 | 4 | 6728 | 5020*1770*1600 | 3970 | 850 | 1770 | 995 | |
| X_M^AY120/1250−30U_K^B | 120 | 1746 | 43 | 7512 | 5470*1770*1600 | 4430 | ||||||||
| X_M^AY140/1250−30U_K^B | 140 | 2063 | 51 | 8641 | 5990*1770*1600 | 4950 | ||||||||
| X_M^AY160/1250−30U_K^B | 160 | 2341 | 58 | 8205 | 6450*1770*1600 | 5400 | ||||||||
| X_M^AY180/1250−30U_K^B | 180 | 2619 | 65 | 10044 | 6905*1770*1600 | 5860 | ||||||||
| X_M^AY200/1250−30U_K^B | 200 | 2896 | 72 | 10851 | 7360*1770*1600 | 6300 | ||||||||
| X_M^AY220/1250−30U_K^B | 220 | 3214 | 80 | 11765 | 7880*1770*1600 | 6830 | ||||||||
| X_M^AY250/1250−30U_K^B | 250 | 3650 | 91 | 12834 | 8600*1770*1600 | 7550 | ||||||||
| X_M^AY200/1500−35U_K^B | 200 | 1500*1500 | 35 | 3498 | 49 | ≥0.6 | 11 | 19530 | 6400*2200*1900 | 5250 | 1170 | 1900 | 1070 | |
| X_M^AY250/1500−35U_K^B | 250 | 4375 | 61 | 22478 | 7225*2200*1900 | 6090 | ||||||||
| X_M^AY300/1500−35U_K^B | 300 | 5235 | 74 | 25526 | 8130*2200*1900 | 6990 | ||||||||
| X_M^AY350/1500−35U_K^B | 350 | 6125 | 86 | 28720 | 8940*2200*1900 | 7840 | ||||||||
| X_M^AY400/1500−35U_K^B | 400 | 6985 | 99 | 32074 | 9880*2200*1900 | 8750 | ||||||||
| X_M^AY450/1500−35U_K^B | 450 | 7875 | 111 | 35086 | 10690*2200*1900 | 9590 | ||||||||
| X_M^AY500/1500−35U_K^B | 500 | 8735 | 123 | 38106 | 11560*2200*1900 | 10430 | ||||||||
Service
Pre-sales Service
In 2 hours, contact and give clear solutions
Sales Service
Provide the required information, product, site planning drawings, etc. timely
After-sales Service
Slove the problem completely,inlcuding product installation,tech training service,spare parts,on-site maintenance, etc.
