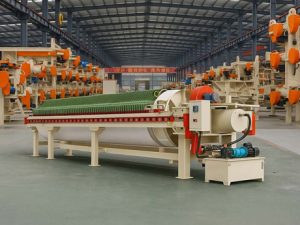

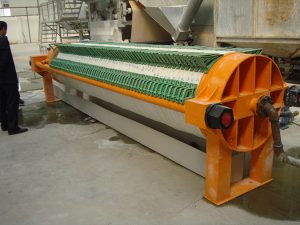

Round Filter Press
-
Advantages:
1.Maximum feeding pressure 2.5MPa.
2. Lowest cake moisture.
3.Circular design plate has better mechanical performance.
-
Applications:
1. Non-metallic mines: kaolin, and various clays.
2. Ceramics and porcelains: bone china tableware, electrical ceramic, ornamental porcelain, and so on.
Introduction
The dewatering effect of the round filter press is far higher than ordinary filter press, a high-pressure filter's single largest cake yield can reach 18 tons, and the lowest cake moisture can reach 15-18%.
The filter area ranges from 20℃ to 80℃
The filtration pressure ranges from 1MPa to 2.5MPa.
The round filter press is mostly used for the mud filtration of solid minerals and the solid-liquid separation of ceramic, kaolin, clay, and other industries.
The high-pressure round filter press is used in rare earth, bauxite, clay, porcelain clay, kaolin, bentonite, red mud, diatomite, activated clay, beneficiation plant concentrate, and tailings.
Parameter
| Model | Filter press(m2) | Plate size(mm) | Cake thickness(mm) | Filter chamber volume(L) | Plate NO(pcs) | Filtration pressure(Mpa) | Weight(Kg) | Dimensions L*W*H(mm) | Foundation Size(mm) | ||
| L | B | D | |||||||||
| X_M^A 20/Ø800−25 | 20 | Ø800 | 25 | 255 | 20 | 1.0-1.2 | 3346 | 3300*1100*1060 | 2300 | 530 | 1050 |
| X_M^A 30/Ø800−25 | 30 | 377 | 30 | 3590 | 3780*1100*1060 | 2980 | |||||
| X_M^A 40/Ø800−25 | 40 | 499 | 40 | 4554 | 4300*1100*1060 | 3500 | |||||
| X_M^A 50/Ø800−25 | 50 | 621 | 50 | 5150 | 4820*1100*1060 | 4020 | |||||
| X_M^A 60/Ø800−25 | 60 | 753 | 60 | 9710 | 5340*1100*1060 | 4540 | |||||
| X_M^A 70/Ø800−25 | 70 | 875 | 70 | 5760 | 5860*1100*1060 | 5580 | |||||
| X_M^A 80/Ø800−25 | 80 | 1000 | 80 | 6860 | 6200*1100*1060 | 5660 | |||||
Service
Pre-sales Service
In 2 hours, contact and give clear solutions
Sales Service
Provide the required information, product, site planning drawings, etc. timely
After-sales Service
Slove the problem completely,inlcuding product installation,tech training service,spare parts,on-site maintenance, etc.
