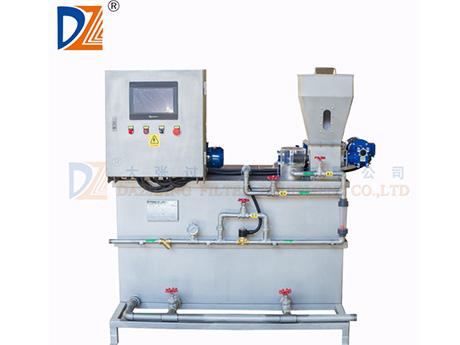

Polymer Dosing System

Advantages:

1.Long service life;

2.High efficiency;

3.Automatic control, continuous operation

4. Stable polymer dissolving and adding
Applications:

Polymer Dosing System is widely used to dissolve and add various polymers automatically. It is widely used in Flocculant process for municipal for industrial waste water treatment; Flocculant preparation while sludge dewatering; Purification treatment of drinking water; Wastewater treatment in Chemicals.

Leave Message Send Email

Introduction

Polymer dosing system is one of the commonly used polymer feeding machine. It can feed the medicine liquid from the container into wastewater continuously and automatically.

The Polymer powder dosage is accurate and adjustable; It can ensure treatment effect and avoid waste.

Stainless steel structure and high quality components has long service lifeand good corrosion resistance.

It is easy in maintaining and nice in appearance.

Parameter

Model	Tank Qty	Capacity	Powder supply tank volume(L)	Power of feeder(frequency conversion)	Power of mixing device（kw）	Tank Material		Dimensions（mm）			Weight(kg)
Model	Tank Qty	Capacity	Powder supply tank volume(L)	Power of feeder(frequency conversion)	Power of mixing device（kw）	Standard	Customized	L	W	H	Weight(kg)
ZJY-500	Two-tanks	500	30	0.18	0.37*2	sus304	316 Q235 PP PVC FRP	1600	1100	1500	240
ZJY-1000	Three-tanks	1000	40	0.18	0.37*3			2000	1200	1600	350
ZJY-1500		1500	50	0.18	0.37*3			2300	1200	1800	450
ZJY-2000		2000	50	0.18	0.37*2			2300	1500	2000	500
ZJY-2500		2500	60	0.18	0.55*3			2700	1700	1900	600
ZJY-3000		3000	80	0.18	0.55*3			3300	1700	1900	700
ZJY-4000		4000	100	0.37	0.75*3			3800	1800	2200	900
ZJY-5000		5000	120	0.37	1.1*3			4000	1800	2200	1100
ZJY-6000		6000	140	0.37	1.5*3			4200	1900	2300	1300
ZJY-8000		8000	160	0.37	1.5*3			4500	2000	2500	1500
ZJY-10000		10000	180	0.37	2.2*3			5000	2000	2700	1800
